Steel/Plate



HOME > Productos > Tool Steel > Steel/Plate > TP2 Tool plate

PRODUCTS

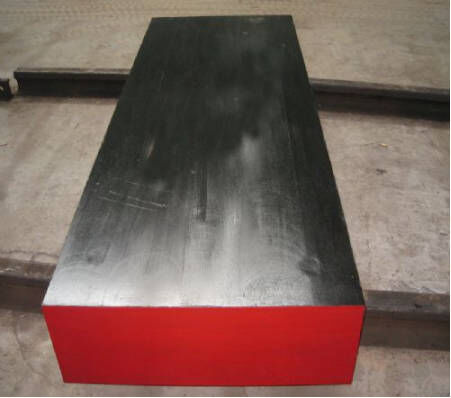

TP2 Tool plate

It has high hardness and can maintain high hardness and red hardness at high temperatures, as well as high wear resistance and appropriate toughness.

Tel: +8613395199790

WhatsApp: +8613395199790

Email: vivian@jrhss.com

PRODUCT DETAILS

Parameter

Chemical Composition

Mechanical Properties

Product name	Tool plate
Standard	JIS, AiSi, ASTM, GB, DIN, EN
Material	ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade40, Grade 42, Grade 50, Grade 55,Grade 60, Grade 65, Grade 80
	EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q
	JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE
Thickness	0.15mm-300mm
Width	1250mm 1500mm or as per client's requirement
Length	1000mm-12000mm or according to customer's special request
Technique	Cold Rolled And Hot Rolled

Grade	C	Si	Mn	P	S	Cu	Cr	Ni
Cor-ten A	0.12	0.25-0.75	0.20-0.50	0.01-0.2	0.03	0.25-0.55	0.5-1.25	0.65
Cor-ten B	0.16	0.3-0.5	0.8-1.25	0.03	0.03	0.25-0.40	0.4-0.65	≤0.4
SPA-H	0.12	0.2-0.75	0.60	0.07-0.15	0.035	0.25-0.55	0.3-1.25	0.65
9CuPCrNi-A	0.12	0.2-0.75	0.20-0.50	0.07-0.15	0.040	0.25-0.55	0.3-1.25	0.65
Q235NH	0.13	0.10-0.40	0.20-0.60	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q295NH	0.15	0.10-0.50	0.30-1.00	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q355NH	0.16	0.5	0.50-1.50	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q415NH	0.12	0.65	1.10	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q460NH	0.12	0.65	1.50	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q500NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q550NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q265GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.2-0.45	0.30-0.65	0.25-0.50
Q295GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.50
Q310GNH	0.12	0.25-0.75	0.20-0.50	0.07-0.12	0.020	0.25-0.55	0.30-1.25	0.65
Q355GNH	0.12	0.20-0.75	1.00	0.07-0.15	0.020	0.25-0.55	0.30-1.25	0.65
Q345GNHL	0.12	0.25-0.75	0.20-0.50	0.07-0.15	0.035	0.25-0.55	0.30-0.65	0.65
Q295GQR2	0.12	0.10-0.40	0.20-0.50	0.06-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.5
Q295GQR3	0.12	0.20-0.40	0.25-0.55	0.06-0.12	0.020	0.25-0.50	---	---
Q345NQR2	0.12	0.25-0.75	0.20-0.50	0.06-0.12	0.020	0.25-0.50	0.3-1.25	0.12-0.65
Q345NQR3	0.12	0.20-0.50	0.25-0.70	0.06-0.12	0.020	0.25-0.50	---	---
Q400NQR1	0.12	0.75	1.10	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q450NQR1	0.12	0.75	1.50	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q500NQR1	0.12	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q550NQR1	0.16	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.65

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility	AISI 440C, EN 10088-3
